MMO / Ti Flexible Alloy Sacrificial Anode Mixed Metal Oxide Titanium Flexible Anode
รายละเอียดสินค้า:
| Place of Origin: | China |
| ชื่อแบรนด์: | High Broad or OEM |
| ได้รับการรับรอง: | ISO, DNV,BV |
| Model Number: | ASTM B348 GRADE I/II |
การชำระเงิน:
| Minimum Order Quantity: | 10 meters |
|---|---|
| ราคา: | negotiable |
| Packaging Details: | on pallet |
| Delivery Time: | 1FCL: 14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 30000meters/month |
|
ข้อมูลรายละเอียด |
|||
| ใบสมัคร: | ความต้านทานดินและกระแสไฟฟ้าขนาดเล็กขนาดใหญ่ | มาตรฐาน: | ASTM B348 เกรด I / II |
|---|---|---|---|
| มีรูป: | แอโนดที่มีความยืดหยุ่นของโลหะออกไซด์ไทเทเนียมผสม | เนื้อหา: | ประทับใจการป้องกัน cathodic ปัจจุบัน |
| ชนิด: | แอโนด c ปัจจุบันประทับใจ | ||
| แสงสูง: | mg anode,magnesium sacrificial anode |
||
รายละเอียดสินค้า

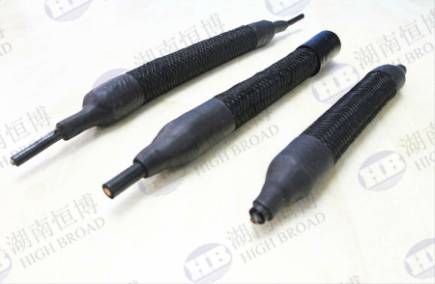

MMO/Ti Flexible Anode Mixed metal oxide titanium flexible anode
MMO wire Flexible anode for impressed current cathodic protection
Flexible anode polymer flexible anode mmo flexible anode Impressed current cathodic protection
MMO/Ti flexible anode is the new generation of flexible anode with a long life. Mixed metal oxide titanium flexible anode integrates the advantages of large current of MMO anode and excellent conductive performance of copper conductor cable. Due to its large current and small grounding resistance, it can be buried in the place far away from the anode structure. MMO/Ti flexible anode is especially suitable for the cathodic protection of high resistance region or pipeline with damaged coating. Mixed metal oxide titanium flexible anode can also be used in the impressed current cathodic protection of large storage tank floors. Because the anode itself contains coke powder, so it is not necessary to add fillers anymore which makes the installation be easy and convenient. The essence of MMO/Ti flexible anode is to use titanium wire to replace the conductive polymer cable between the original flexible anodes. MMO wire has good electrochemical performance. When the coke powder is consumed completely, mixed metal oxide titanium flexible anode can be used alone as auxiliary anode. Theoretically speaking, its life is much longer than flexible anode.
Production standard:ASTM B348 GRADE I/II
| Item | Performance | Test Method |
| Material | Grade class I | ASTM B863-2010 |
| Coating thickness | ≥6 g/m2 | ASTM B568-2009 |
| Strengthen working life | ≥25years | NACE TM108-2008 |
| Technical Parameters | TB39-52 |
| Anode Diameter | 39±2mm |
| MMO/Ti Anode Wire Diameter | ≥0.8mm |
| Anode Design Life | ≥40years |
| Anode Consumption (Including Filling) | ≤6mg/A.a |
| Output Current (Maximum) | 1500mA/m |
| Coating Thickness of Metal Oxide | ≥ 6g/m2 |
| Resistivity of Mixed Metal Oxides | 10-5Ω.cm |
| Contact Resistance of Anode and Cable Joint | ≤1.0 mΩ |
| Anode Resistance | ≤0.007Ω∕m |
| Content of Coke Breeze Filler | ≥ 98% |
| Coke Breeze Resistance | ≤0.55 Ω·cm |
| Fabric Jacket Tube | Anticorrosion,permeable |
| Fabric Jacket Mesh | Wearproof,anti environmental temperature variability |
| Anode Weight | ≥1.3kg/m |
| Anode Length(Each Unit) | 500m(or made to order) |
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
Company Brief Introduction:
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
